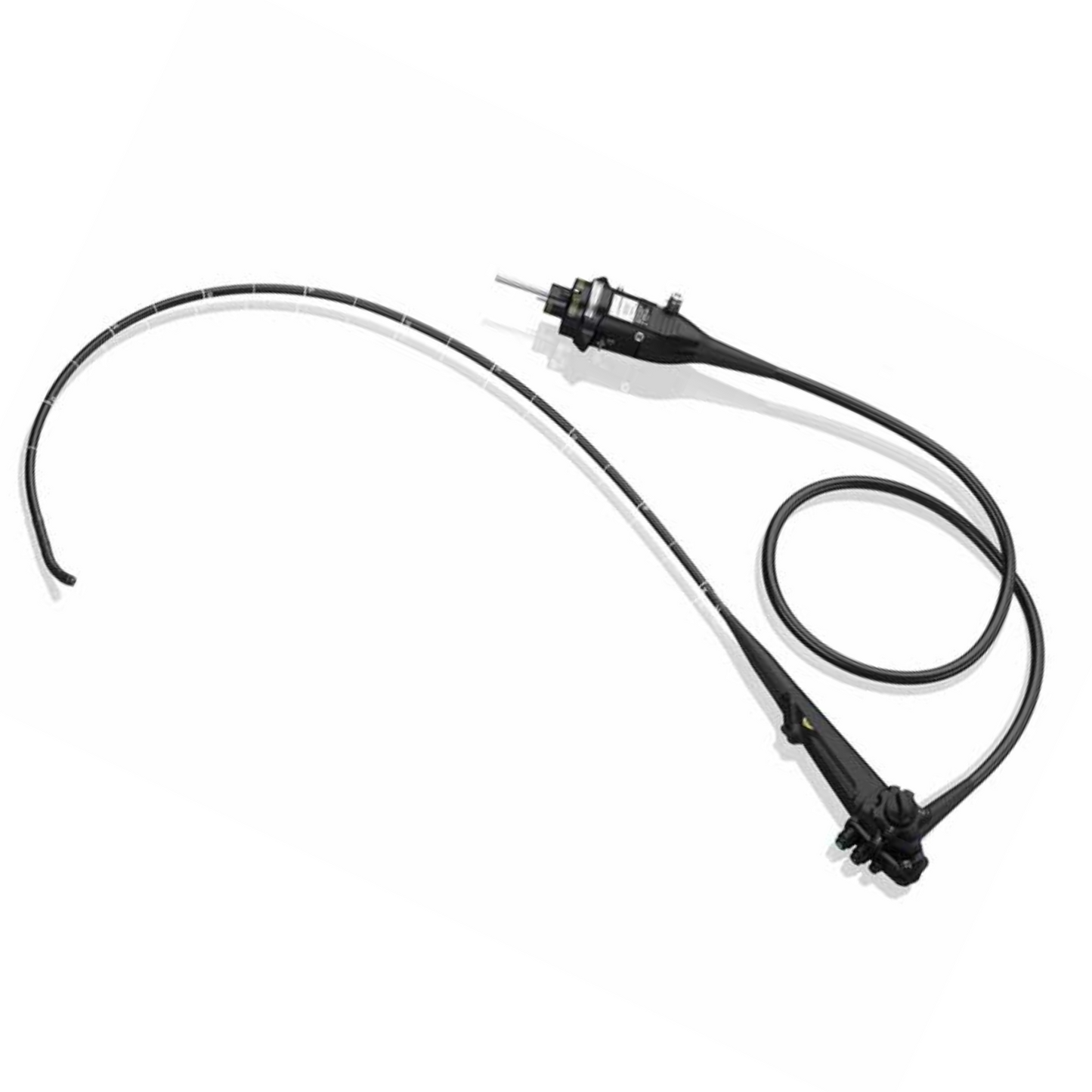

Olympus EVIS EXERA III GIF-H190 HD Video Gastroscope | Slim 9.2mm, HDTV Imaging, Enhanced NBI & Water-Jet Endoscope

Overview

The Olympus EVIS EXERA III GIF-H190 Video Gastroscope is a premium upper gastrointestinal (GI) endoscopy device designed to provide exceptional image quality, enhanced diagnostic accuracy, and reliable therapeutic performance. As part of the Olympus EVIS EXERA III platform, the GIF-H190 is trusted by healthcare providers worldwide for routine examinations, early lesion detection, and complex endoscopic procedures.

Advanced Imaging Performance

1. HDTV resolution delivers crystal-clear, lifelike visualization of the GI tract.

2. Enhanced Narrow Band Imaging (NBI) improves contrast and visibility of mucosal structures and blood vessels, supporting accurate lesion detection.

3. Brighter illumination ensures deeper and clearer visualization compared to standard white-light endoscopy.

Slim Design & Patient Comfort

1. Slim 9.2 mm distal outer diameter allows easier insertion and enhanced maneuverability.

2. Improves patient comfort during diagnostic and therapeutic procedures without compromising performance.

3. Ideal for both routine screenings and high-risk patient cases.

Therapeutic Versatility

1.  2.8 mm working channel supports a wide range of endoscopic instruments, including biopsy forceps, snares, and accessories for therapeutic interventions.

2.  Enables both diagnostic and advanced therapeutic procedures in a single examination.

Water-Jet Function

1. Integrated forward water-jet provides on-demand flushing of blood, mucus, or debris.

2. Maintains a clear field of view during complex procedures such as hemostasis and EMR.

3. Reduces the need for scope removal and enhances procedural efficiency.

Field of View & Angulation

1. Wide 140° field of view ensures comprehensive visualization of the GI tract.

2. Flexible angulation range: Up 210°, Down 90°, Left 100°, Right 100°, allowing better access to hard-to-reach areas.

3. Improves detection rates while minimizing blind spots.

Workflow Efficiency & Safety

1. One-touch waterproof connector eliminates the need for a separate cap, simplifying setup and reprocessing.

2. Increases staff efficiency while ensuring high levels of patient safety.

3. Built for durability and reliability in demanding clinical environments.

Key Specifications

Model: Olympus EVIS EXERA III GIF-H190

Imaging: HDTV + Narrow Band Imaging (NBI)

Distal Diameter: 9.2 mm

Working Length: 103 cm

Instrument Channel: 2.8 mm

Field of View: 140°

Angulation Range: Up 210°, Down 90°, Left 100°, Right 100°

Special Functions: Forward water-jet, one-touch waterproof connector

Vendor / Brand: Olympus Medical Systems

Type: Video Gastroscope / Endoscope

Clinical Applications

1. Routine upper GI screening

2. Early detection of lesions, polyps, and cancerous changes

3. Hemostasis and therapeutic interventions

4. Endoscopic Mucosal Resection (EMR) and advanced GI procedures

Why Choose the Olympus GIF-H190?

The Olympus EVIS EXERA III GIF-H190 combines slim design, HDTV imaging, advanced NBI, and therapeutic versatility in one high-performance gastroscope. It is engineered to deliver superior patient outcomes while enhancing clinical workflow — making it the gold standard in modern upper GI endoscopy.
